1. Understanding the Role of HPMC in Concrete and Mortar
1.1 Major Benefits of HPMC as a Multifunctional Admixture
Hydroxypropyl Methylcellulose (HPMC) is widely used in concrete and mortar formulations because it provides several important performance-enhancing functions. From improving water retention to controlling rheology, HPMC can substantially influence the behavior of cement-based materials.
1.1.1 Outstanding Water-Retention Capability
One of the primary advantages of HPMC is its ability to retain water. Adequate moisture is essential for cement hydration, yet porous or dry substrates such as masonry can quickly draw water from freshly applied mortar through capillary absorption.
When insufficient water remains available, cement hydration may be incomplete, potentially resulting in poor adhesion, surface defects, and cracking. After dissolving in water, HPMC creates a protective colloidal structure around cement particles. This structure acts as a barrier that slows both evaporation and water migration into absorbent substrates, helping maintain the moisture necessary for more effective hydration.
1.1.2 Effective Rheology and Workability Control
HPMC also functions as a highly effective thickening agent. Even relatively small quantities can increase the viscosity of cementitious mixtures and improve their consistency and handling characteristics.
The resulting smooth, cohesive texture can reduce friction among sand particles and make mortar easier to spread. Another important benefit is improved resistance to sagging. When tile adhesive or mortar is applied to a vertical surface, the internal yield stress generated by HPMC helps the material withstand gravitational forces and reduces the possibility of tile displacement.
1.1.3 Beneficial Thermal Gelation Behavior
Another distinctive characteristic of HPMC is its thermal gelation behavior. It dissolves in relatively cold water but can undergo gel formation when exposed to an appropriate elevated temperature.
Because cement hydration generates heat, this thermal response can contribute additional structural stiffness during the early stages of hardening. As a result, the material can retain its intended shape more effectively during initial setting.
1.1.4 Strong Resistance to Washout
HPMC is also useful in underwater non-dispersible concrete, where resistance to washout is particularly important. Its ability to increase cohesion helps prevent cementitious components from being excessively dispersed when exposed to moving water.
Research has indicated that interactions between HPMC-containing systems and calcium silicate hydrate (C-S-H) can contribute to improved resistance against water-induced erosion.

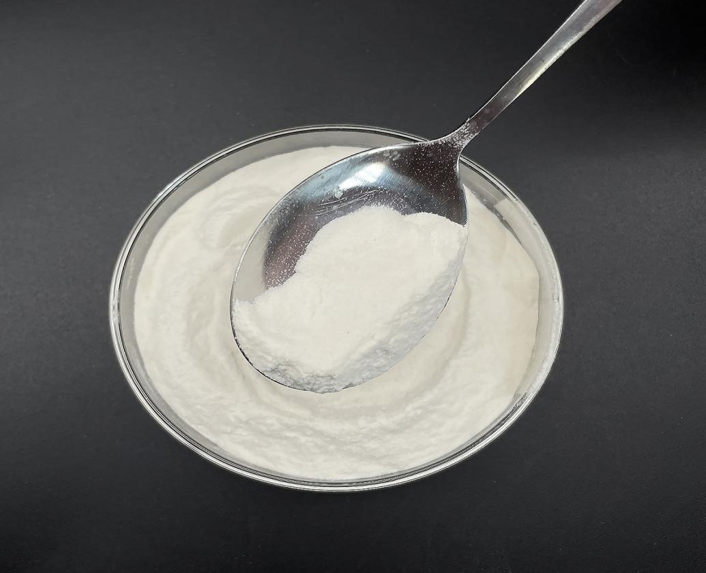

TRUNNANO Hydroxypropyl Methylcellulose HPMC Powder
1.2 Limitations of Conventional HPMC
Despite its numerous advantages, conventional HPMC also presents several challenges. These limitations have become important considerations when designing high-performance mortar and concrete systems.
1.2.1 Potential Reduction in Mechanical Strength
One of the most important disadvantages associated with HPMC is its potential impact on hardened strength. Research has reported substantial reductions in compressive and flexural strength in certain mortar formulations containing HPMC.
In some 3D-printing mortar systems, the incorporation of HPMC has been associated with considerable declines in mechanical performance, and simply extending the curing period may not fully restore the lost strength.
Likewise, in aluminate cement-gypsum systems, HPMC can increase porosity and pore dimensions while influencing the morphology of hydration products. These changes may negatively affect flexural strength, compressive strength, and tensile bond performance.
1.2.2 Why Can HPMC Reduce Strength?
The strength reduction associated with HPMC generally involves multiple mechanisms.
First, HPMC can promote air entrainment, resulting in the formation of additional microscopic air voids. These pores reduce the density and compactness of the hardened cement matrix.
Second, HPMC can exert a retarding influence on cement hydration. While delayed hydration can sometimes benefit workability, it may also slow early strength development.
Together, increased porosity and delayed hydration can create a difficult balance between fresh-state performance and hardened-state strength.
1.2.3 The Trade-Off Between Thickening and Fluidity
The viscosity-enhancing characteristics of HPMC can also reduce mortar flowability. Generally, as viscosity increases, the ability of the material to flow decreases.
This creates an inherent formulation challenge. Under mixtures containing relatively high water-to-cement ratios, the water-retention effect of HPMC may become diluted. Furthermore, strong shear forces can disturb the protective water-retention structure, potentially reducing its effectiveness.
Therefore, obtaining excellent workability, water retention, and mechanical strength simultaneously remains a significant challenge with traditional HPMC systems.
2. TRUNNANO’s Nano-Modification Approach to HPMC
2.1 Addressing HPMC Limitations Through Nanomaterial Synergy
TRUNNANO has focused on addressing the fundamental conflict between HPMC’s beneficial water-retention and thickening properties and its possible negative effects on strength.
The approach involves incorporating suitable nanomaterials, including amorphous nano-silica, into HPMC-based systems. This creates an organic-inorganic composite network in which the polymer and nanoparticles work together to improve the overall performance of cementitious materials.
2.1.1 Nano-Filling and Matrix Densification
Nanoparticles possess an extremely high specific surface area and can interact with fine-scale voids within cementitious systems.
They can help fill microscopic spaces associated with HPMC-induced air entrainment and gaps between cement particles. This filling action can improve matrix compactness and compensate for some of the density loss associated with additional pore formation.
A denser internal structure provides a more favorable foundation for mechanical strength.
2.1.2 Promoting Hydration Through Nano-Nucleation
Nanoparticles can also act as nucleation sites for cement hydration products. By providing surfaces on which hydration products can develop, nanomaterials may accelerate the formation of C-S-H gel.
Improved hydration can generate additional binding phases within the cement matrix, helping offset the delayed early strength development that may occur in conventional HPMC formulations.
2.1.3 Strengthening the Interfacial Transition Zone
The interfacial transition zone (ITZ) between aggregates and cement paste is another important area where nano-modification can provide benefits.
The combined action of HPMC and nanoparticles can help optimize this region, potentially reducing microscopic defects and improving the continuity of the cementitious matrix. A stronger and more uniform ITZ can contribute to improved overall structural integrity.
2.2 Performance Potential: Combining Water Retention With Strength
The nano-modification strategy has demonstrated promising results in experimental cementitious systems.
Certain patented technologies indicate that combinations involving HPMC, amorphous nano-silica, and other components can be used to develop multifunctional internal curing materials with both shrinkage-control and strength-enhancing characteristics.
In advanced 3D-printed ultra-high-performance concrete systems, combinations of nano-clay and HPMC have also been reported to achieve compressive strengths above 160 MPa in printed components. Such results illustrate the potential of carefully engineered nanomaterial-polymer systems to balance fresh-state rheology with hardened-state mechanical performance.
2.3 Consistent Quality Through Controlled Production
The performance of HPMC depends on numerous material parameters, including solvent activity, degree of reaction, viscosity, and hydroxypropoxy content.
TRUNNANO applies controlled production and quality-management practices across the HPMC modification process. By focusing on formulation design, material selection, processing, and product customization, the company aims to provide stable and repeatable performance across different batches.
Technology Comparison: Conventional HPMC vs. TRUNNANO Nano-Modified HPMC
| Performance Category | Conventional HPMC | TRUNNANO Nano-Modified HPMC |
|---|---|---|
| Water Retention | Excellent | Excellent, with the core function maintained |
| Compressive Strength | May decrease significantly | Designed to compensate for strength loss and potentially increase strength |
| Density and Compactness | Greater porosity and lower density may occur | Nano-filling helps improve compactness |
| Cement Hydration | Can delay early strength development | Nano-nucleation can support faster hydration |
| Interfacial Transition Zone | More potential for microscopic defects | Improved interface and reduced defects |
| Air-Void Structure | Additional and potentially unevenly distributed air voids | Nanoparticle filling can help refine the microstructure |
| Overall Performance | Trade-off between water retention and strength | Designed to balance water retention, workability, and strength |
3. Applications of Nano-Modified HPMC
3.1 High-Performance Mortar and Concrete
Nano-modified HPMC can be considered for applications where high water retention and good workability are required without sacrificing mechanical performance. It is particularly relevant to cementitious materials where strength and durability are important design criteria.
3.2 3D-Printed Construction Materials
Construction 3D printing requires materials to satisfy several demanding conditions simultaneously. The mixture must be sufficiently fluid for extrusion while maintaining enough structural stability to support subsequent layers.
At the same time, the finished material must achieve appropriate mechanical strength. Nano-modified HPMC systems can help engineers balance extrudability, buildability, rheological stability, and final strength.
3.3 Underwater Non-Dispersible Concrete
Underwater construction requires cementitious materials that can withstand water movement without excessive dispersion.
HPMC can provide valuable anti-washout characteristics, while nano-modification offers an additional pathway for improving matrix compactness and strength after underwater placement and curing.
3.4 Specialty Mortars
Self-leveling compounds, repair mortars, grouting materials, and other specialty formulations often require a careful balance between flowability, adhesion, water retention, and mechanical strength.
Nano-modified HPMC can help address the conventional conflict between high viscosity and reduced flowability, creating opportunities for formulations that combine improved leveling characteristics with stronger hardened performance.
4. About TRUNNANO
TRUNNANO, also known as Luoyang Tongrun Info Technology Co., Ltd., was established in 2014 and specializes in nano-modified concrete admixture technologies.
The company has developed expertise in nano-modified HPMC systems designed to combine the advantages of organic polymer additives with the performance-enhancing characteristics of inorganic nanomaterials. Its product applications cover high-performance mortar, underwater non-dispersible concrete, self-leveling materials, repair mortars, grouting systems, and other specialty construction materials.
TRUNNANO also provides customized formulation services for different application requirements. Through controlled quality-management procedures and a focus on consistent product performance, its materials are supplied to customers across Europe, America, Southeast Asia, and other international markets.
Nano-modification represents a potential shift in HPMC technology—from simply accepting the traditional trade-off between water retention and strength toward developing multifunctional systems designed to deliver both properties more effectively.
